Coherence locking in a parallel nuclear magnetic resonance probe defends against gradient field spillover

Mengjia He, Neil MacKinnon, Dominique Buyens, Burkhard Luy, and Jan G. Korvink
Abstract

The implementation of parallel nuclear magnetic resonance detection aims to enhance measurement throughput in support of high-throughput-screening applications, including, for example, drug discovery. In support of modern pulse sequences and solvent suppression methods, each detection site must have independent pulsed field gradient capabilities. Hereby, a challenge is introduced in which the local gradients applied in parallel detectors introduce field spillover into adjacent channels, leading to spin dephasing and, hence, to signal suppression. This study proposes a compensation scheme employing optimized pulses to achieve coherence locking during gradient pulse periods. The design of coherence-locking pulses utilizes optimal control to address gradient-induced field inhomogeneity. These pulses are applied in a pulsed-gradient spin echo (PGSE) experiment and a parallel heteronuclear single quantum coherence (HSQC) experiment, demonstrating their effectiveness in protecting the desired coherences from gradient field spillover. This compensation scheme presents a valuable solution for magnetic resonance probes equipped with parallel and independently switchable gradient coils.

Share
1 Introduction

While nuclear magnetic resonance (NMR) technology is routinely employed to analyze large sets of chemical samples and to monitor dynamic biochemical processes, achieving a high-throughput capability has remained a challenge. Simultaneous detection of multiple samples enhances throughput (MacNamara et al.1999; Kupče et al.2021), while composite detection using a bundle of isolated capillaries achieves high throughput with simpler hardware (Ross et al.2001). Greater parallel independence relies on multiple radiofrequency (RF) coils for parallel excitation and reception, along with pulsed-gradient fields (MacNamara et al.1999; Hou et al.1999) or alternative detection (Li et al.1999) to separate the parallel detectors. Parallel NMR has been combined with classical pulse sequences (Wang et al.2004), reaction kinetic measurements (Ciobanu et al.2003), and dissolution dynamic nuclear polarization (Kim et al.2016). Integrating multiple coils into a single silicon chip has demonstrated portable NMR applications (Lei et al.2020), employing time-interleaved pulses for RF decoupling. For full parallel and independent operation, each detector typically integrates individual RF coils, gradient coils, and shimming units (Cheng et al.2022; Becker et al.2023). However, practical limitations in electromagnetic shielding design, particularly in dense and highly composite arrays, result in field leakage and inter-channel coupling. RF decoupling schemes have been reported recently with regard to both the excitation and reception stages (He et al.2024). The pulsed-gradient field spillover among parallel detectors directly induces B0 inhomogeneity, leading to spin dephasing, thus posing a challenge that remains to be addressed.

A straightforward approach to mitigate spin dephasing to B0 inhomogeneity is by transferring the spin state to longitudinal magnetization, e.g., Iz for single spins or IzSz for coupled spins. However, this proves to be challenging when the initial state is unknown or when time constraints exist. Spin locking via RF pulses is an effective strategy for preserving spin magnetization; i.e., a long hard pulse with a defined phase is applied to protect a specific coherence, such as Ix or Iy. In heteronuclear experiments, continuous-wave spin-locking fields have been utilized to render proton multiple quantum coherence immune to 1H–1H J coupling (Grzesiek and Bax1995). Spin-locking-induced crossing has a wide range of applications, including preparation of singlet states (DeVience et al.2013a, b; Rodin et al.2018), excitation of long-lived states (Sonnefeld et al.2022; Barskiy et al.2017; DeVience et al.2015), and low field spectroscopy (DeVience et al.2021; Kovtunov et al.2014). Moreover, traditional spin-locking pulses have been adapted to address B0 and B1 inhomogeneity in quantifying the rotating frame relaxation time (Jiang and Chen2018; Gram et al.2021).

In this study, we used optimal control to design cyclic pulses that preserve the desired coherence, such as I for a single spin and I-S+ for a coupled spin pair. The coherence locking by optimal control (CLOC) pulses exhibit robustness against a range of B0 drifts, effectively mitigating gradient spillover effects in parallel NMR experiments. Multiple CLOC blocks are inserted to safeguard specific coherence transfer pathways when the pulse sequence incorporates a series of gradient pulses. Using this protection idea, we demonstrated that the parallel HSQC experiment retains its signal-to-noise ratio (SNR) through coherence locking.

2 Results and discussion

Figure 1a shows the geometry of the parallel detector used in the experiments. Each detector is equipped with a Helmholtz gradient coil and a strip line RF coil. To provide an initial view, three scenarios were considered for the HSQC experiments. The first scenario, serving as a reference, is shown in the black part of Fig. 1b. A standard HSQC pulse sequence was used, in which gradient pulses with a ratio of 2:2:-1 were applied to select the S+S+I+I- coherence transfer pathway. The second scenario, depicted in orange in Fig. 1b, introduces an additional set of gradient pulses GC. These gradients, independent of G, were applied with a ratio of 2:2:1 and were temporally shifted relative to the primary gradients to induce gradient field spillover. The third scenario, indicated in blue in Fig. 1b, integrates three CLOC blocks along with GC into the HSQC sequence. The first and second CLOC blocks were applied to 13C, while the third was applied to 1H.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f01

Figure 1Setup of the HSQC experiment under gradient field spillover. (a) The parallel detector geometry, where each detector is equipped with a Helmholtz gradient coil and a strip line. (b) Pulse sequences of the three experimental HSQC scenarios. The black part represents a standard HSQC pulse sequence, with a gradient pulse ratio of 2:2:-1 to select the S+S+I+I- coherence pathway, defining the first scenario. The orange part (GC) represents additional gradient pulses from a second detector, set at a 2:2:1 ratio, inserted into HSQC as coupled gradients, defining the second scenario. The blue section indicates the insertion of CLOC pulses into HSQC, aligned with the coupled gradient pulses, representing the third scenario. Specifically, CL1 and CL2 are applied to 13C, while CL3 is applied to 1H. (c) The 1D projections of HSQC spectra corresponding to the three experimental scenarios, obtained using 0.6 M glycine-2-13C in D2O.

Download

Experiments were conducted for all three scenarios using glycine-2-13C as the test sample, and the resulting spectra are shown in Fig. 1c. Compared to the reference spectrum from the standard HSQC experiment, the gradient-coupling scenario resulted in a 20 % signal loss. In HSQC, a coherence pathway is refocused only if the net effect of all gradient pulses is zero. Additional gradients can disrupt this balance, causing dephasing and signal loss, which can happen when separate gradient-enhanced experiments are run in parallel at two detector sites. However, including CLOC blocks resulted in a signal intensity equal to the reference, indicating that the relevant coherences were preserved. Different gradient ratios are utilized in a parallel probe if multiple detectors execute different experiments or employ the same sequence but select distinct coherence pathways. The gradient spillover disrupts the intended coherence, and coherence locking can mitigate the dephasing effect in these scenarios. Note that, if two detectors use identical sequences with the same gradient pulse ratio, the total gradient ratio remains unchanged. Consequently, no gradient defense mechanisms are required, as shown in Fig. S2b.

Following the overview, we detail the gradient-coupling issue and the coherence-locking compensation solution. The simulation results quantifying the gradient spillover effect are presented in Sect. S1 in the Supplement, and the measurement of the gradient spillover ratio is provided below. Firstly, the maximum gradient strength of the parallel probe was measured using the pulsed-gradient spin echo (PGSE) experiment for a sample of 10%H2O/90%D2O with a diffusion constant of D=1.9×10-9m2s-1 (Holz and Weingartner1991). The ratio of the signal to the maximum value is a function of the applied gradient amplitude (Stejskal and Tanner1965):

(1) ln ( I g / I 0 ) = - [ γ 2 δ 2 G 2 ( Δ - δ ) ] D ,

where δ=1 ms is the gradient pulse length, Δ=7 ms is the interval between two gradient pulses, and γ=2.675×108rads-1T-1 is the proton gyromagnetic ratio. Curve fitting yielded a maximum gradient of Gmax=103.06Gcm-1; see Fig. 2a.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f02

Figure 2Measurement of the gradient spillover ratio for the parallel detector in Fig. 1 using 10%H2O/90%D2O. (a) Signal intensity as a function of gradient amplitude in the PGSE sequence; the maximum gradient amplitude was calculated to be Gmax=103.06Gcm-1 at a 100 % gradient. (b) Signal intensity as a function of coupling-gradient amplitude in a pulse acquisition experiment; the gradient spillover ratio was calculated to be RG=1.9×10-3. The circles and the solid lines represent the experimental data and the fitted curves, respectively.

Download

The gradient spillover ratio was then measured in a pulse acquisition experiment, while a gradient pulse was applied to the second detector; see the insert in Fig. 2b. The ratio of the signal to the maximum value is a function of the applied gradient amplitude:

(2) I g I 0 = sin ( kg ) kg ,

where k=l/2γRGGmaxg(t)dt, l=6.5 mm is the detection zone length, and g(t)dt=0.9 ms is the time integral of the trapezoidal gradient pulse. The gradient spillover ratio was determined by curve fitting to be RG=1.9×10-3.

Depending on the gradient pulses used, the impact of such a gradient spillover can differ. For example, the gradient coupling resulted in 20 % signal loss in an HSQC experiment, as shown in Fig. 1c. Strong gradients are essential for diffusion experiments as they can induce a coupled gradient of 0.20 G cm−1 in the neighboring detector, making gradient coupling a critical concern. Here, we propose a compensation scheme utilizing RF pulses to mitigate the gradient spillover. The idea is to protect desired coherences from unwanted field gradients using CLOC pulses, which are time-aligned with the coupling-gradient pulses. For example, a gradient pulse applied to detector 1 can be compensated for by simultaneously applying a CLOC pulse to detector 2. This scheme was demonstrated with a PGSE experiment and a parallel HSQC experiment.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f03

Figure 3Coherence-locking test in PGSE using 0.6 M glycine-2-13C in D2O. (a) The pulse sequence, where the 1H pulse and G were applied to detector 1, and GC was applied to detector 2. (b) The signal intensity of the water peak, normalized to its value when GC=0, was plotted as a function of GC, with G fixed at 10 %.

Download

As shown in Fig. 3a, an additional gradient, GC, was introduced as the coupling component in a standard PGSE sequence, temporally shifted relative to the primary gradient. When GC disrupted the strength balance on either side of the inversion pulse, two CLOC pulses were applied, aligned with each block of GC, to counteract gradient spillover. These CLOC pulses preserved spin coherence, protecting I+ during the first GC period and I during the second. Alternatively, the pulses can enable effective cyclic propagation (i.e., U=1), which is a stricter condition and was selected as our design target. Details of pulse optimization are provided later. The proposed coherence locking in PGSE was tested using 0.6 M glycine-2-13C in D2O, with results shown in Fig. 3b. The GC amplitude was swept from 0 % to 95 % in the pulse program, while G was fixed at 10 %, and the water peak intensity was extracted and normalized to its value at GC=0 for comparison. Compared to the large signal loss in the gradient-coupling case, the CLOC pulse effectively restored the signal intensity.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f04

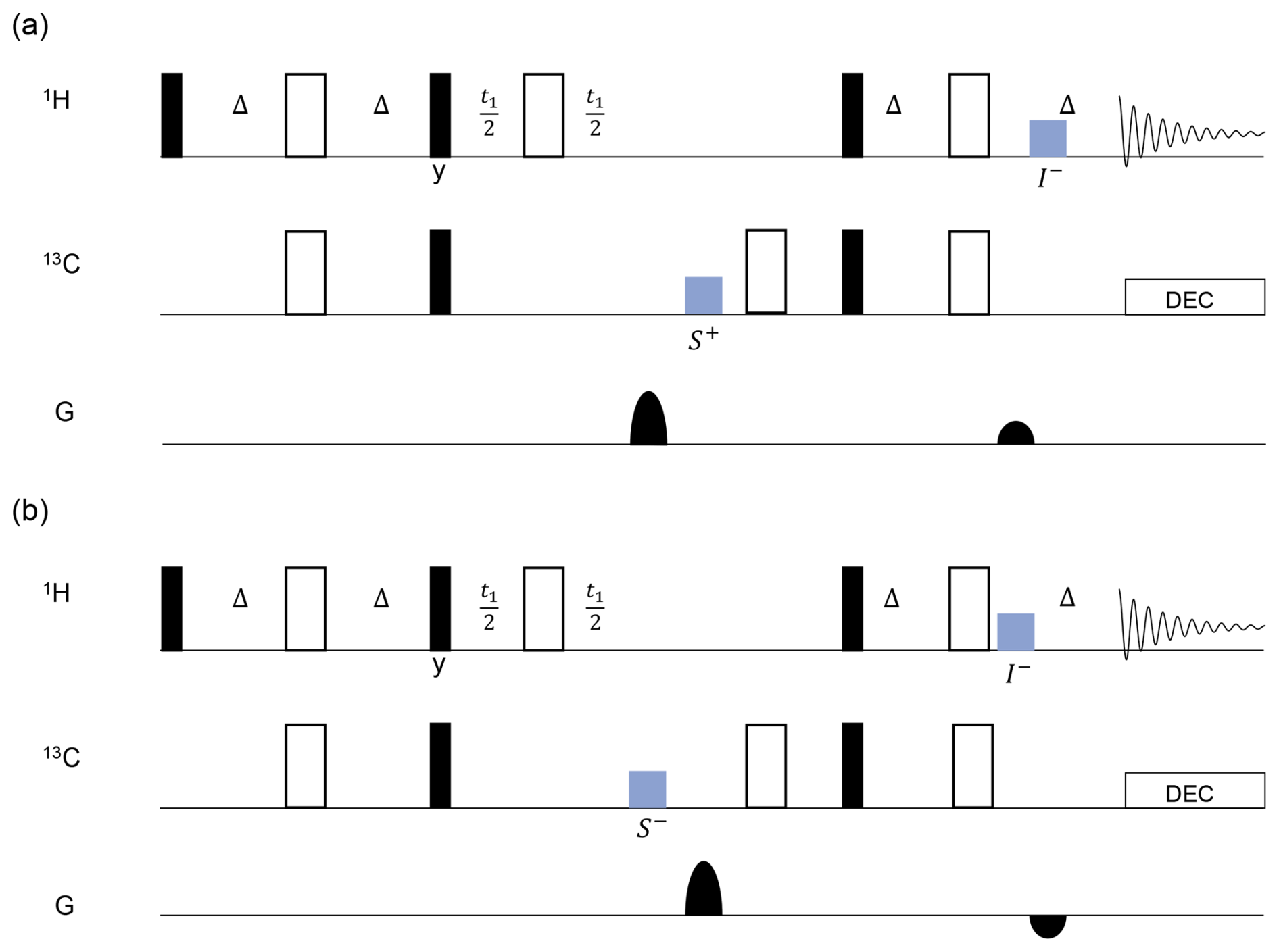

Figure 4The scheme for gradient pulse compensation in a parallel HSQC pulse sequence involves blocks (colored in blue) indicating the CLOC pulse. The gradient pulse ratio in detector 1 (a) was set to 4:1 to select the S+I- pathway. In detector 2 (b), the gradient pulse ratio was set to 4:-1 to select the S-I- pathway. The black blocks represent π/2 pulses, and the white blocks represent π pulses, with all phases set to 0 unless specifically noted. Δ=1/4J. The protected coherences are labeled below the CLOC blocks.

Download

A pulse sequence tailored for parallel HSQC is illustrated in Fig. 4, in which the fundamental HSQC sequences were implemented in detectors 1 and 2. The gradient ratio in detector 1 was set to 4:1 to select the S+I- pathway (Fig. 4a), while, in detector 2, it was adjusted to 4:-1 to select the S-I- pathway (Fig. 4b). The compensation CLOC pulses, indicated in blue, were applied in detector 1, while the gradient pulses were applied in detector 2 and vice versa. The gradient pulses in parallel detectors were executed with a slight time delay to allow for the insertion of the CLOC pulses. Each compensation pulse was applied to lock onto the relevant coherence. For instance, the first CLOC block in detector 1 was applied on 13C to protect S+ and its J coupling-induced product IzS+. The protected coherences are labeled below the CLOC pulses in Fig. 4. With this approach, the CLOC pulse must be designed to compensate for gradient spillover (effectively a range of frequency offsets) to protect one or more desired coherences.

In the pulse optimization, both the source and target states were specified as the locked coherence. When a gradient pulse is applied, its shape and duration remain fixed, while its amplitude can vary. The optimization of CLOC pulses adheres to this principle. Specifically, the gradient pulse contributes to a time-dependent drift Hamiltonian Hg(t)=Asin(πt/τ)Hz0, where Hz0 represents the Zeeman Hamiltonian under a 1 T field, and τ=1 ms is the gradient pulse duration. To cover a maximum B0 drift of ±0.06Gauss, measured with the parallel probe, the maximum B0 drift of ±0.25Gauss was specified for the CLOC pulse. Therefore, multiple time-dependent drifts were included in the optimization to account for both spatial and temporal variations in B0 drifts. The RF amplitude in the 1H channel was set to 6 kHz, with a ±20 %B1 inhomogeneity, covering a 7 kHz bandwidth and, simultaneously, a maximum B0 drift of ±0.25Gauss, corresponding to ±1.07kHz offset. For the 13C channel, the RF amplitude was adjusted to 4 kHz, with a ±15 %B1 inhomogeneity, covering a 6 kHz bandwidth and, simultaneously, a maximum B0 drift of ±0.25Gauss. Decoupling of heteronuclear J coupling is demonstrated below, and the compensation for homonuclear J coupling is discussed in Sect. S4 in the Supplement. Although concurrent optimization can explicitly include the J-coupling term in the system Hamiltonian, it involves parameters from two spins, resulting in a large model. Therefore, the strategy is to build optimal control for a single spin and test its heteronuclear decoupling effect within the designed bandwidth. The decoupling effect was quantified using average Hamiltonian theory (Waugh1982). The J-coupling scale factor is given by the following:

(3) χ = norm ( c ) ,

where c is the time-dependent J-coupling tensor in the toggling frame, defined by the RF pulse plus resonance offset (see Sect. S4). Figure 5 displays the χ values for CLOC pulses designed for universal locking of I+, I, and Iz of a single spin. A single CLOC pulse reduces heteronuclear J coupling by less than 10 % across the designed resonance offset and B1 inhomogeneity range; see Fig. 5a and b. Given a pulse duration of 1 ms, heteronuclear J couplings smaller than or on the order of hundreds of hertz can be ignored as χJτ≪1. This treatment also applies to coupling with a third spin when studying 1H and 13C, such as JCN and JHN in proteins (LeMaster and Richards1985; Liu and Prestegard2009). Figure 5c shows that residual coupling exists when two CLOC pulses are applied simultaneously to 1H and 13C. However, it does not imply that the decoupling fails as χ sums all the items of the heteronuclear J-coupling tensor. One can also calculate the coherence-locking efficiency when double-quantum coherences require protection. The coherence locking for double-quantum coherence was tested by simulating a heteronuclear multiple quantum coherence (HMQC) sequence, as detailed in Sect. S7.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f05

Figure 5Scale factor χ of the JHC coupling as a function of resonance offset and B1 amplitude. (a) The CLOC pulse is applied to 1H, while 13C is on resonance. (b) The CLOC pulse is applied to 13C, while 1H is on resonance. (c) The CLOC pulses are applied simultaneously to 1H and 13C, with ν0 and ν1 aligned on both channels.

Download

Using this strategy, the simulated locking efficiency of the optimal control pulses is depicted in Fig. 6. The sample was segmented into 12 voxels along the z direction, and the spin trajectory for each voxel was computed while simultaneously executing a CLOC pulse and a coupled gradient pulse, which induced a maximum B0 drift of ±0.25Gauss. Figure 6a illustrates that the ensemble spin states start from I and oscillate between −1 and 1 while remaining confined within a narrow range and then go back to I at the end of a 1 ms gradient pulse. Figure 6b and c show the evolution of ensemble spin states starting from S+ and I-S+, respectively. Additionally, Fig. 6d–f present the spin trajectory with the same initial states but without coherence locking for comparison, indicating coherence dephasing caused by the coupled gradient.

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f06

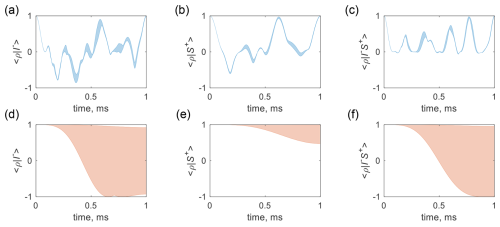

Figure 6Ensemble spin trajectory subject to the gradient field spillover dephasing. Panels (a), (b), and (c) represent the trajectories starting from I, S+, and I-S+, with the CLOC pulses applied to 1H, 13C, and 1H & 13C, respectively. Panels (d), (e), and (f) correspond to the respective trajectories without CLOC pulses. The real values of the inner product are displayed. The 1H and 13C were on resonance, and the J coupling constant was 145 Hz. The RF amplitudes were 6 kHz for 1H and 4 kHz for 13C.

Download

https://mr.copernicus.org/articles/6/173/2025/mr-6-173-2025-f07

Figure 7Experimental parallel HSQC spectra of glycine-2-13(a) and D-glucose-13C6 (b) using the pulse sequence in Fig. 4. The gray lines represent the results without gradient coupling as a reference. The orange lines display the spectrum under gradient spillover (no compensation), and the blue lines display the results with coherence-locking compensation.

Download

The parallel HSQC pulse sequence was tested using a parallel probe (see Sect. 3 for details); two detectors of the probe were used, with 0.6 M glycine-2-13C in D2O in detector 1 and 0.3 M D-glucose-13C6 in D2O in detector 2. The resulting spectra are presented in Fig. 7, where the 1D projections of the 1H and 13C signals from the 2D spectrum are displayed to illustrate the signal intensity for three cases. The single-detector scenario (gray) serves as a reference, while the orange lines represent amplitude-suppressed signals caused by gradient spillover-induced dephasing. In contrast, the blue lines correspond to the results of parallel operation with coherence locking, demonstrating signal intensity recovery and effective dephasing compensation. Suppose the CLOC pulses effectively achieve broadband locking for both the 1H and 13C spin coherences, such that each peak in the coherence-locking case has the same intensity as in the reference case. However, in Fig. 7b, slight intensity differences are observed between the coherence-locking results and the reference, particularly for the peaks at 3.8 and 3.9 ppm in the 1H dimension, correlating to 72.8 and 79.1 ppm in the 13C dimension, respectively. Since the pulse optimization did not compensate for homonuclear coupling (1H–1H and 13C–13C), coherence-locking efficiency is degraded, especially when the offset difference between two peaks is comparable to the homonuclear J-coupling constant. A comparison of D-glucose-13C6 HSQC spectra with and without homonuclear coupling is provided in Sect. S6. The discrepancies also arise from the chemical shift dependence of coherence-locking efficiency. For instance, each CLOC pulse introduces slight phase distortion; if each pulse has a fidelity of 95 %, the combined fidelity of two pulses is reduced to 90 %. The robustness of CLOC pulses encompasses factors including bandwidth, B1 inhomogeneity, and gradient amplitude, which are detailed in Sect. S5. In addition, coherence locking can also be influenced by RF coupling; when a CLOC pulse is applied in detector 1, weak RF signals (about 1 % at 500 MHz (He et al.2024)) may be transferred from detector 1 to detector 2, distorting the spin state. Hence, the CLOC pulse was adjusted to relatively lower amplitudes, i.e., 6 kHz for 1H and 4 kHz for 13C. The corresponding power levels were 0.43 W for the 1H channel, and 2.3 W for the 13C channel on detector 2, making the RF coupling effect more significant in the 13C channel, highlighting the challenges of coherence locking for low-sensitivity nuclei when a large bandwidth is required.

3 Methods

For sample preparation, a 10%H2O/90%D2O solution was prepared to measure the gradient strength and gradient spillover ratio. Two solutions were prepared in D2O (99.9 %): a 0.6 M glycine-2-13C solution and a 0.3 M D-glucose-13C6 solution for the parallel HSQC experiment. The same glycine-2-13C solution was also used for the PGSE experiment. The samples were loaded into syringes and manually pumped into the individual fluidic chambers of the dedicated detector. The D2O, glycine-2-13C, and D-glucose-13C6 were purchased from Sigma-Aldrich.

Experimental validation was performed using a four-detector parallel NMR probe (Voxalytic GmbH), as shown in Fig. S12, which was installed in a Bruker AVANCE NEO 11.7 T (1H frequency of 500.13 MHz) NMR system (Bruker BioSpin GmbH). For demonstration, two of the four detectors were used, each double-resonant (1H/13C) and equipped with an independent single-axis pulsed field gradient. The two gradient channels were powered by the Bruker GREAT micro-imaging amplifiers using a customized cable splitting the three amplifiers from a single cable into three individual cables (Bruker). Pulse calibration was conducted for each detector individually. In detector 1, a hard 90° 1H of pulse length 7.4 ms was applied at 20 W, and a hard 90° 13C pulse of length 25 ms was applied at 25 W, with a corresponding value in detector 2 of 6.1 ms for 1H and of 19 ms for 13C. The power levels were then scaled down for the CLOC pulses with low amplitudes. The HSQC contained 256 t1 increments, each with one scan of 1024 data points. A total of 32 dummy scans were executed to stabilize the spin system before data collection; the relaxation delay was 1 s, and the receiver gain is 10. The sweep width was 10 ppm for 1H and 150 ppm for 13C. Experiments explicitly run in parallel were done using the multi-receive option in TopSpin 4.1.3. The parallel HSQC experiments were repeated twice for good shimming quality: data from detector 1 were collected with global shimming focused on detector 1, and data from detector 2 were collected with shimming focused on detector 2.

The magnetic-field simulation was conducted with the finite-element method software COMSOL MultiPhysics 6.1 (COMSOL AB2022), and the simulated data were processed with MATLAB (2023b) (The MathWorks, Inc.2023). The pulse optimization and spin dynamic calculations were completed with Spinach v2.8 (Hogben et al.2011); the detailed setting for optimal control is provided in Sect. S3.

4 Conclusion

We employed CLOC pulses to protect specific coherences from gradient spillover in a parallel NMR setup. This approach effectively compensates for gradient-induced phase shifts, preserving coherence and signal integrity across parallel detectors, as demonstrated in a parallel HSQC experiment. This optimal control-assisted coherence locking provides an alternative strategy for designing coherence protection protocols.

Although we tested the heteronuclear decoupling effect of specific optimal pulses, general optimal pulses could potentially average out the heteronuclear coupling due to their “noise-like” waveforms. The overall strategy is to establish the locking of a single spin and validate its decoupling, thereby avoiding the complexity of a coupled spin model. While the CLOC pulses protect the targeted coherences, allowing coherence evolution to be neglected during this period, it should be excluded when calculating the J-coupling evolution delay.

The limitations of this approach can stem from RF coupling between multiple detectors and homonuclear coupling in a general spin system. As shown by a parallel HSQC experiment and HMQC simulations, single-spin coherence can be universally locked in a general spin system, while double-quantum coherences (IS) can be locked using two simultaneous locking pulses. However, locking higher-order heteronuclear coherence is challenging in practice as multiple coherence-locking pulses can introduce significant RF coupling. Although optimal control can compensate for homonuclear coupling at the cost of increased RF power, the compensation fails when two spins have a small chemical shift difference and exhibit second-order spectra, where the RF Hamiltonian commutes with the J-coupling term, and the Zeeman term nearly commutes with the J-coupling term. Both high-order coherence locking and homonuclear decoupling require additional RF power; a broader approach may jointly compensate for RF coupling and gradient spillover effects. The limitation of extending this scheme to higher parallelism also arises from relaxation decay, which increases with more alternating gradient pulses.

This work discussed conducting the same pulse sequence in two detectors with different gradient ratios. When the detectors perform different experiments, such as HMQC on detector 1 and HSQC on detector 2, the relaxation delay on each detector can be adjusted to synchronize the parallel pulses. However, because the acquisition is no longer simultaneous, addressing the RF coupling between the pulse and free induction decay in the acquisition stage is beyond the scope of this work.

Code and data availability

The MATLAB code and experimental data are available at https://doi.org/10.5281/zenodo.15188023 (He et al.2025).

Supplement

The supplement related to this article is available online at https://doi.org/10.5194/mr-6-173-2025-supplement.

Author contributions

JGK and NM conceived the pulse compensation idea. MH performed the simulations with input from all of the coauthors. MH and NM drafted the paper. MH, NM, and DB conducted the experiments. All of the authors reviewed and refined the paper. JGK, BL, and NM provided supervision and secured the funding.

Competing interests

Jan G. Korvink is a shareholder of Voxalytic GmbH, a spinoff company that produces and markets microscale NMR devices. At least one of the (co-)authors is a member of the editorial board of Magnetic Resonance. The peer-review process was guided by an independent editor, and the other authors also have no other competing interests to declare.

Disclaimer

Publisher's note: Copernicus Publications remains neutral with regard to jurisdictional claims made in the text, published maps, institutional affiliations, or any other geographical representation in this paper. While Copernicus Publications makes every effort to include appropriate place names, the final responsibility lies with the authors.

Acknowledgements

We acknowledge support from the state of Baden-Württemberg through the bwHPC BwUniCluster 2.0 and the Helmholtz Society's Materials Systems Engineering program. We thank Thomas Oerther (Bruker BioSpin GmbH Co. KG) for assistance with the GREAT imaging gradient amplifiers used in parallel NMR spectroscopy experiments and Ilya Kuprov for helpful suggestions on the Spinach simulations.

Financial support

This research was supported by the Helmholtz Association (Joint Lab Virtual Materials Design), the Deutsche Forschungsgemeinschaft (CRC 1527 HyPERiON), and the European Research Council (HiSCORE, grant no. 951459).

The article processing charges for this open-access publication were covered by the Karlsruhe Institute of Technology (KIT).

Review statement

This paper was edited by Eriks Kupce and reviewed by two anonymous referees.
